Removing the heat shield of the crankcase ventilation of the cylinders 5 to 8

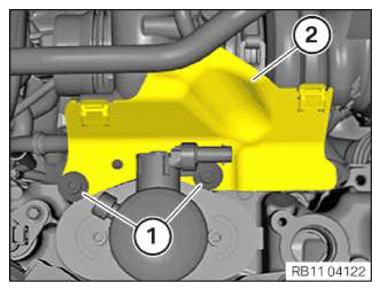

Loosen screws (1).
Remove the heat shield (2) upwards.

G15176053

Courtesy of BMW OF NORTH AMERICA, INC.
