Installing the heat shield of the cylinder head cover for cylinders 1 to 4
Installing the heat shield of the cylinder head cover for cylinders 1 to 4

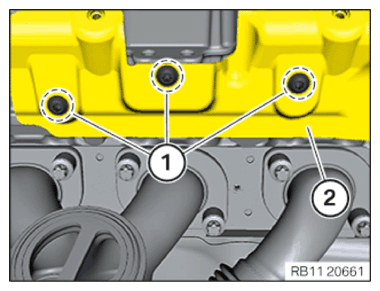

Position the heat shield (2).
Tighten the screws (1).
TIGHTENING TORQUES SPECIFICATION
Heat protection plate
M6x12 screw
Replace screw.
tightening torque
10 Nm
Courtesy of BMW OF NORTH AMERICA, INC.
