Installing left and right gutter strip on the windshield
NOTE:
Description is for left component only. Procedure on the right side is identical.
Installing gutter strip on the windshield
- Replace clamps (2).
Parts:
Clamps
- Replace gutter strips (1).
Parts:
Gutter strip
- Snap-in the gutter strip (1) starting from the button into the clamps (2).
 Courtesy of BMW OF NORTH AMERICA, INC.
|

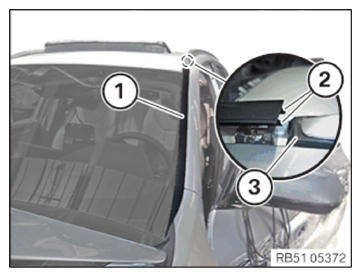

- Make sure that the guide lugs (2) of the gutter strip (1) are inserted correctly in the area of roof strip (3).
 Courtesy of BMW OF NORTH AMERICA, INC.
|
