Removing the engine from the lifting table

Release union nuts (2).
Unclip the pressure lines (3) from the retaining clips in the areas (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Loosen nuts (1).
Loosen screws (2).
Feed out and remove the catalytic converters (3).

Courtesy of BMW OF NORTH AMERICA, INC.
Unlock and disconnect the plug connection (1) from the VTG.
Release the wiring harness mountings (2).
Unlock and disconnect the plug connection (3) from the automatic transmission.
Release the screw in area (4).
Remove ground cable.

Courtesy of BMW OF NORTH AMERICA, INC.
Unlock plug connection (1) and disconnect.

Courtesy of BMW OF NORTH AMERICA, INC.
Lash transmission with commercially available tensioning strap (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Loosen nut (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Loosen screw (1).
Disconnect hydraulic lines (2) to transmission oil cooler.

Courtesy of BMW OF NORTH AMERICA, INC.
Loosen screws (1).
Lower and store front prop shaft (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Remove cover (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Release converter bolt (1).
Crankshaft at central bolt may only be turned clockwise.

Courtesy of BMW OF NORTH AMERICA, INC.
Prepare special tool 0 494 451 (24 4 160) (1) with the special tool 0 494 622 (24 4 164) (2) as shown.

Courtesy of BMW OF NORTH AMERICA, INC.
Insert special tool 0 494 451 (24 4 160) into the recess of the transmission housing and apply slight tension using the screw (1).
Screw the bolt (2) in to the stop.
Tighten down screw (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Secure engine on engine mounting bracket with a workshop crane and special tool 0 490 567 (11 0 020).

Courtesy of BMW OF NORTH AMERICA, INC.
Support engine.
Loosen the screws (arrows) and remove the transmission.

Courtesy of BMW OF NORTH AMERICA, INC.
Release retaining screws (1) on the lifting table (2) on both sides by a few threads.

Courtesy of BMW OF NORTH AMERICA, INC.
Slide transmission (1) to the rear and disconnect from the engine.

Courtesy of BMW OF NORTH AMERICA, INC.
Loosen screw (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Loosen screw (1).

Courtesy of BMW OF NORTH AMERICA, INC.

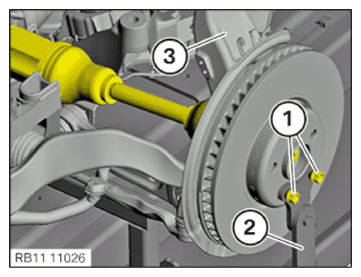

NOTE: The operations shown only for one side must be carried out on both sides.
The screws (1) must be tightened hand-tight.
Release the central bolt of the output shaft.
Remove the swivel bearing mount (2) and set it aside.
Hold the swivel bearing (3) with the special tool 2 220 718.

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: The operations shown only for one side must be carried out on both sides.
Loosen screw (1).
Tilt the swivel bearing (2) slightly forwards in the direction of the arrow.
Loosen and remove the output shaft (3) at the front axle differential with a suitable tool.

Courtesy of BMW OF NORTH AMERICA, INC.
Lift engine with a workshop crane (1) and the special tool 0 490 567 (11 0 020) out of the engine mounts.

Courtesy of BMW OF NORTH AMERICA, INC.
