Installing the catalytic converter near engine, bottom at bank 1

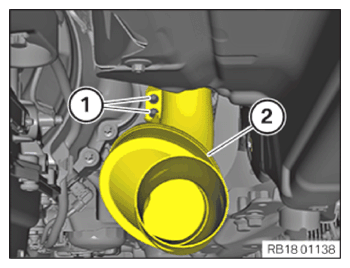

• Feed in the catalytic converter near engine (2) upwards.
• Position the catalytic converter near engine (2) on the stud bolt.
• Tighten nuts (1).
  TIGHTENING TORQUE SPECIFICATIONS



  Bottom catalytic converter
  Nut M8 Replace nuts.	tightening torque	23 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Replace V-band clamp.

  Parts:  V-band clamp

• Replace gasket.

  Parts:  Seal

• Slide the V-clip (1) towards the bottom onto the catalytic converter near engine.
• Position the V-clip (1) on the catalytic converter near engine.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Tighten down screw (2).

Installing version with gasoline particulate filter for cylinders 1 to 4

Installing the differential pressure sensor for the cylinders 1 to 4

• Grease the thread on the exhaust system with high-temperature assembly paste.
  CONSUMABLE SPECIFICATION



  High-temperature assembly paste

  10 g, Tube

  83230309003

• Replace molded hose (1).

  Parts:  Molded hose

• Feed in the differential pressure sensor with pressure line downwards.

  Courtesy of BMW OF NORTH AMERICA, INC.

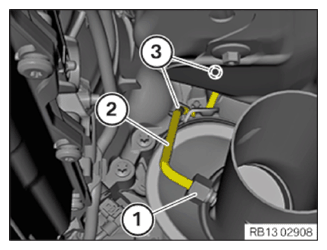

• Clip the pressure line (2) into the clamps (3).
• Tighten nut (1).
  TIGHTENING TORQUE SPECIFICATIONS



  Pressure line on catalytic converter
  Pressure line	Tightening torque	40 Nm

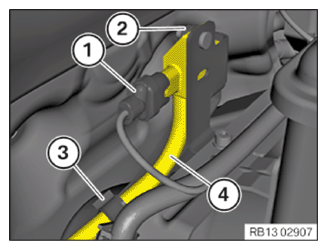

• Clip in the hose (4) into the clamp (3).
• Connect connectors (1) and lock.
• Tighten nut (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALL EXHAUST SYSTEM .
• Refer to INSTALLING THE REAR LEFT AND RIGHT TENSION STRUT .
• Refer to INSTALLING THE AIR DUCT .
• Refer to INSTALLING THE STIFFENING PLATE .
• Refer to INSTALLING HEAT SHIELD, TOP .
• Refer to INSTALLING THE LAMBDA OXYGEN SENSOR FOR THE CYLINDERS 1 TO 4 .
• Refer to INSTALLING THE LAMBDA OXYGEN SENSOR FOR THE CYLINDERS 5 TO 8 .
• Refer to INSTALLING THE CROSSING OF THE TRANSMISSION WIRING HARNESS .
• Refer to INSTALLING THE COOLANT EXPANSION TANK FOR THE LOW-TEMPERATURE .
• Refer to INSTALLING THE OXYGEN SENSOR MONITOR FOR CYLINDERS 1 TO 4 .
• Refer to FASTENING THE ENGINE VENTILATION LINE OF CYLINDER BANK 1 .
• Refer to INSTALLING BRACKET FOR RIGHT INTAKE SILENCER .
• Refer to INSTALLING OIL FILLER NECK .
• Refer to FASTENING THE ENGINE VENTILATION LINE OF CYLINDER BANK 1 .
• Refer to INSTALLING RIGHT INTAKE SILENCER HOUSING .
• Refer to INSTALLING THE LEFT INTAKE SILENCER BRACKET .
• Refer to FASTENING THE ENGINE VENTILATION LINE OF CYLINDER BANK 2 .
• Refer to INSTALLING LEFT INTAKE SILENCER HOUSING .
• Refer to INSTALLING THE RIGHT STRUT BRACE .
• Refer to INSTALLING ACOUSTIC COVER .
• Refer to INSTALLING CATALYTIC CONVERTER, BOTTOM (CYLINDERS 1-4) .
