General Electrical System -- Repair X5 M (F95)
>>
61 62 Rear Wiper
>>
61 62 030 Replace the wiper arm for the rear wiper (X5 M)
>>
Remove the wiper arm of the rear wiper
Remove the wiper arm of the rear wiper
Open the protective cap (1) on the wiper arm (2) of the rear wiper.
Courtesy of BMW OF NORTH AMERICA, INC.
Release the nut (1) from the wiper arm (2) of the rear wiper.
Courtesy of BMW OF NORTH AMERICA, INC.

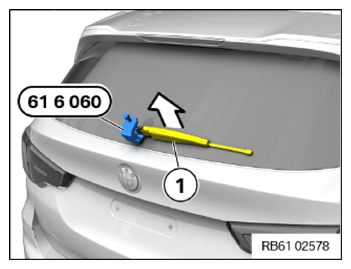

Release the wiper arm (1) of the rear wiper with special tool
0 493 441 (61 6 060)
and remove in arrow direction.
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
