Install soft-close motor automatic function

Check

• Check the retaining lug (1) on the Bowden cable (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

  Result

  » The retaining lug (1) is damaged or is not present.

  Measure

• Replace the Bowden cable (2).

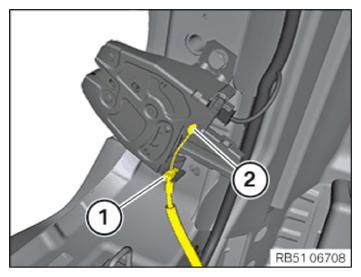

• Insert the Bowden cable (1) together with the soft-close motor into the vehicle.
• Attach the cable linkage (2) to the trunk lid lock.
• Clip in the counter support (1) at the trunk lid lock and lock it in place correctly.

  Courtesy of BMW OF NORTH AMERICA, INC.

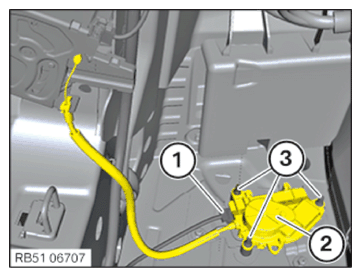

• Clip the soft-close automatic function for doors (2) into the holders (3).
• Connect connector (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING LEFT STORAGE COMPARTMENT .
• Refer to INSTALLING LOADING EDGE TRIM .
• Refer to INSTALLING THE BATTERY COVER .
• Refer to INSTALLING THE LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANEL ON LEFT (ALL EQUIPMENT VERSIONS) .
• Refer to INSTALLING THE BOTTOM LEFT C-PILLAR TRIM PANEL (3RD SEAT ROW) .
• Refer to INSTALLING THE REAR DOOR SILL COVER STRIP .
• Refer to INSTALLING BACKREST SIDE SECTION .
• Refer to INSTALLING THE LEFT OR RIGHT LUGGAGE COMPARTMENT LAMP .
• Refer to INSTALLING THE FLAP IN THE LEFT LUGGAGE COMPARTMENT TRIM PANEL .
• Refer to INSTALLING LUGGAGE COMPARTMENT FLOOR COVERING .
• Refer to INSTALLING ROLLER COVER FOR LUGGAGE COMPARTMENT .
