Installing trim panel of luggage compartment

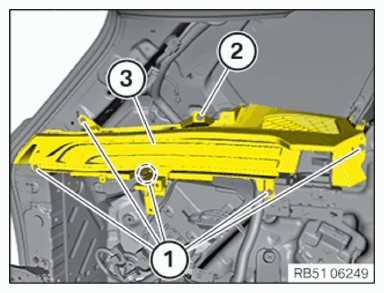

- Feed in and correctly position trim panel of luggage compartment (2) .
- Tighten the screws (1)
and nuts (2)
.TIGHTENING TORQUES SPECIFICATION
Luggage compartment trim panel to body Oval-head screw M5x16 Tightening torque 3.0 Nm hexagon screw M4.8x19 Tightening torque 3.0 Nm Plastic nut Tightening torque 2.6 Nm
Follow-up work
- Refer to INSTALLING THE RIGHT D-PILLAR TRIM PANEL .
- Refer to INSTALLING C-PILLAR TRIM PANEL .
- Refer to INSTALLING THE LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANEL ON LEFT (ALL EQUIPMENT VERSIONS) .
- Refer to INSTALLING THE BOTTOM C-PILLAR TRIM PANEL .
- Refer to INSTALLING THE BOTTOM LEFT C-PILLAR TRIM PANEL (3RD SEAT ROW) .
- Refer to INSTALLING THE REAR DOOR SILL COVER STRIP (ELECTRICAL REAR SEAT) .
- Refer to INSTALLING BACKREST SIDE SECTION .
- Refer to INSTALLING THE LEFT OR RIGHT LUGGAGE COMPARTMENT LAMP .
- Refer to INSTALLING THE FLAP IN THE LEFT LUGGAGE COMPARTMENT TRIM PANEL .
- Refer to INSTALLING LUGGAGE COMPARTMENT FLOOR COVERING .
- Refer to INSTALLING ROLLER COVER FOR LUGGAGE COMPARTMENT .
