Body Equipment -- Repair (1 Of 2) X5 M (F95)
>>
51 12 Bumper, Rear
>>
51 12 315 Removing and installing/replacing the rear diffuser (X5 M)
>>
Installing the rear diffuser
Installing the rear diffuser

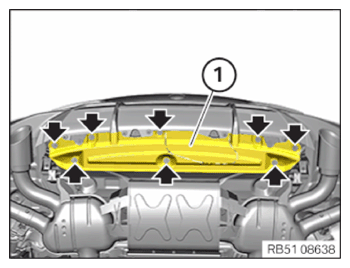

Feed and position diffuser (1).
Tighten all marked screws (arrows).
TIGHTENING TORQUES SPECIFICATION
Diffuser
screw
Tightening torque
2.5 Nm
Courtesy of BMW OF NORTH AMERICA, INC.
