Cylinder Head -- Repair (F98)
>>
11 12 Cylinder Head
>>
11 12 100 Removing and installing cylinder head
>>
Installing the cylinder head gasket
Installing the cylinder head gasket

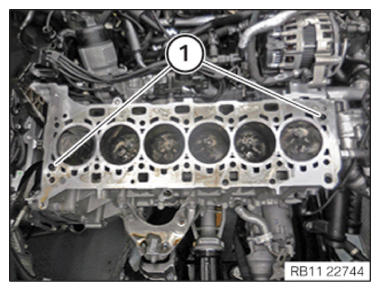

Check the fitting sleeves
(1)
for damage, replace if necessary.
Courtesy of BMW OF NORTH AMERICA, INC.
Replace cylinder head gasket
(1)
.
Parts:
Cylinder head gasket

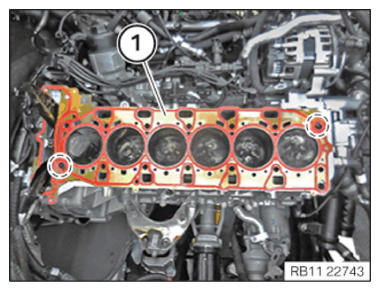

Check cylinder head gasket
(1)
using the part number.
Courtesy of BMW OF NORTH AMERICA, INC.
Guide in and install cylinder head gasket
(1)
in the
marked
area.
Courtesy of BMW OF NORTH AMERICA, INC.
