Removing the top right and left cover in the engine compartment

NOTE: Description is for left component only. Procedure on the right side is identical.

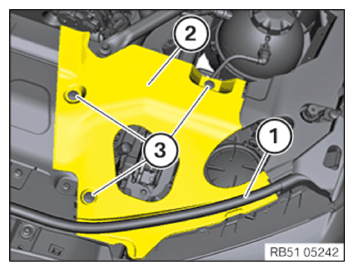

• Detach the hood seal (1) in the area of the cover (2).
• Loosen the expanding rivet (3).
• Guide out and remove the cover (2).

Courtesy of BMW OF NORTH AMERICA, INC.
