Remove front cross connection
Remove front cross connection
Remove front cross connection

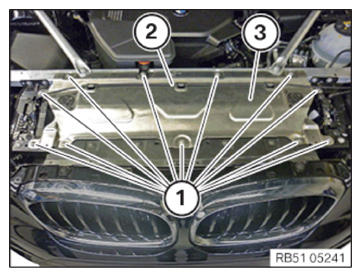

Loosen screws (1).
Detach the Bowden cable (2).
Feed out the cross connection (3) and remove in an upward direction.
