Installing the front section of the front wheel arch cover on the left and right

NOTE: Description is for left component only. Procedure on the right side is identical.

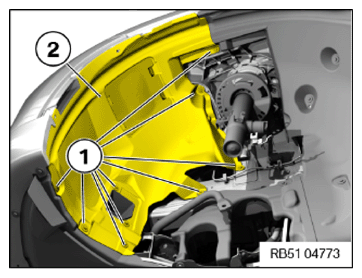

• Thread in the front section (2) of the front wheel arch cover.
• Tighten the screws (1).

TIGHTENING TORQUE SPECIFICATION

Wheel arch cover (screws)
Thermoplastic hexagon screw	Tightening torque	3 Nm

Courtesy of BMW OF NORTH AMERICA, INC.
