Removing the left-hand air duct
Preliminary work
- Refer to REMOVING LEFT FRONT-END STRUT .
WARNING:
Hot surfaces.
Risk of burning!
Risk of burning!
- Perform all work only on components that have cooled down.
- Loosen clamp (1).
- Remove the air duct (2) on the left.

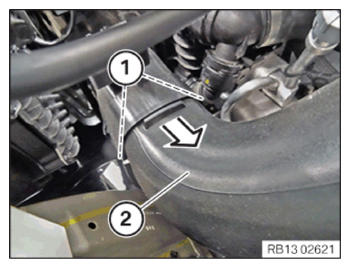

- Unlock the clamps (1).
- Feed out air duct (2) in the direction of arrow and remove.
