Installing the left air duct

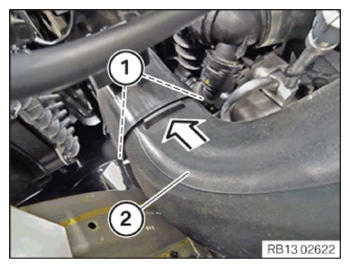

- Insert the left air duct (2) in direction of arrow and install it.
The clamps (1) must engage audibly.

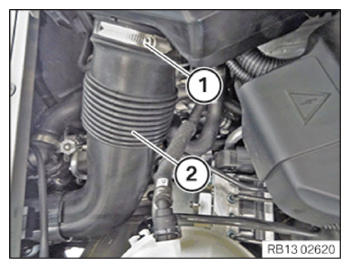

- Insert the left air duct (2) and connect it.
- Tighten clamp (1).
TIGHTENING TORQUES SPECIFICATION
| Air line to intake filter housing | ||
|---|---|---|
| cl. | tightening torque | 3 Nm |
Follow-up work
- Refer to INSTALLING THE LEFT FRONT-END STRUT .
