13 71 Intake Silencer
>>
13 71 173 Removing and installing/replacing the air duct on the right
>>
Removing the right air duct
Removing the right air duct
WARNING:
Hot surfaces.
Risk of burning!
Perform all work only on components that have cooled down.

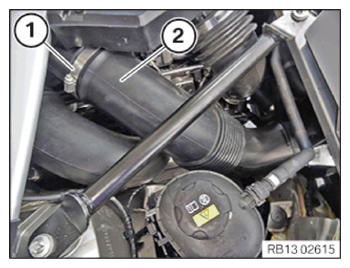

Loosen clamp (1).
Remove the right air duct (2).
Courtesy of BMW OF NORTH AMERICA, INC.

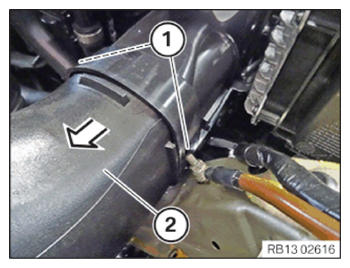

Unlock the clamps (1).
Remove the air duct (2) in the direction of arrow.
Courtesy of BMW OF NORTH AMERICA, INC.

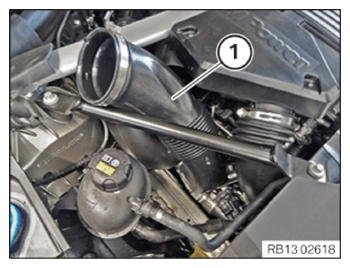

Pull out the right air duct (1) and install it.
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
