51 48 Engine Compartment Insulation
>>
51 48 001 Removing and installing/replacing insulation lining on engine hood/hood
>>
Mount the damping layer on the hood
Mount the damping layer on the hood

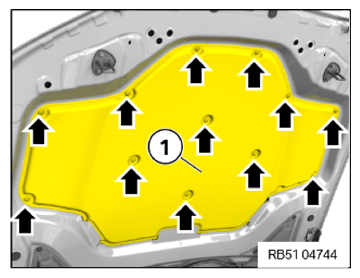

Position the damping layer
(1)
and mount all clips.
Courtesy of BMW OF NORTH AMERICA, INC.
