Connecting negative battery cable of the system battery
NOTE:

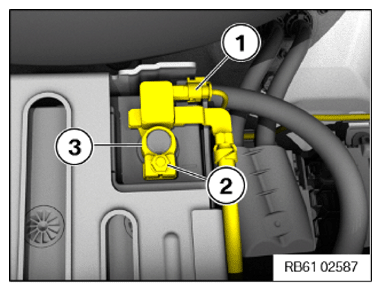

Schematic diagram is for example purposes. Some parts may differ in certain details.
- Position the negative battery cable of the vehicle battery (3) flush on the negative battery terminal as shown.
- Tighten nut (2).
TIGHTENING TORQUES SPECIFICATION
| Negative battery terminal | ||
|---|---|---|
| Nut M6 | Tightening torque | 5 Nm |
- Check plug connection (1) is seated correctly.
