Blocking engine in TDC firing position (M40i 6-cyl.)

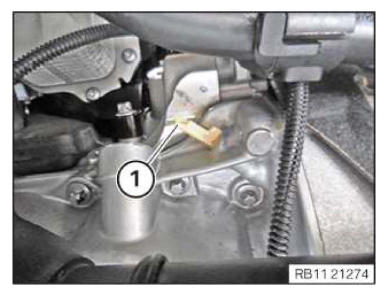

Guide out and remove sealing cap (1).

Courtesy of BMW OF NORTH AMERICA, INC.
NOTE:
RISK OF DAMAGE
Damage to the engine.
If the engine is manually rotated in the wrong direction of rotation, the engine can be damaged.
- Only rotate the engine manually in the correct direction of rotation: a) clockwise when looking at the damper, or b) counterclockwise when looking at the chain drive. b) applies only if the timing chain is installed in the rear.
Courtesy of BMW OF NORTH AMERICA, INC.

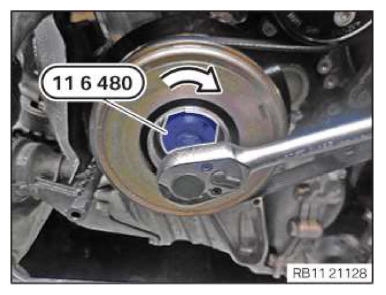

With the special tool 0 493 380 (11 6 480), turn the engine in arrow direction to the TDC firing position of cylinder 1.
Vehicles with automatic transmission:

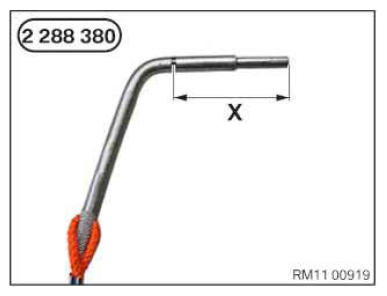

Dimension (X) = 66 mm

Special tool 2 288 380 must be inserted up to dimension (X) into the dowel hole.

Courtesy of BMW OF NORTH AMERICA, INC.

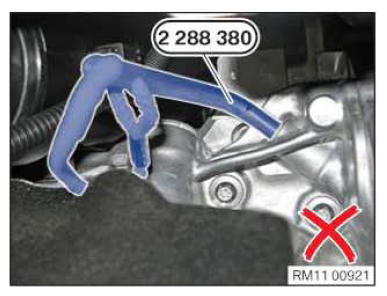

Vehicles with automatic transmission:
The special tool 2 288 380 is incorrectly positioned.

TDC firing position of cylinder 1 not achieved.

Courtesy of BMW OF NORTH AMERICA, INC.

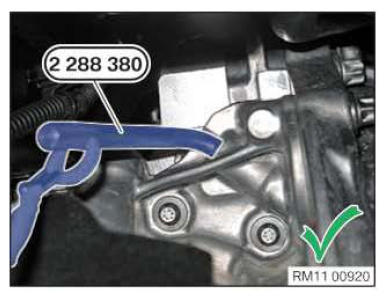

Vehicles with automatic transmission:
The special tool 2 288 380 is correctly positioned.

Engine in TDC firing position of cylinder 1.

Courtesy of BMW OF NORTH AMERICA, INC.

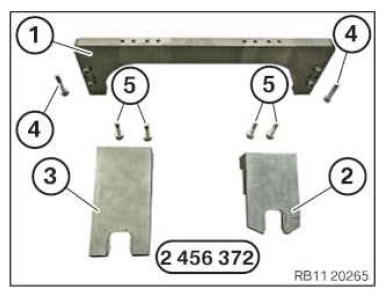

Keep the set of special tools 2 456 372 at hand:

Number	Description
1	Basic carrier
2	Setting gauge for adjusting the Intake
	camshaft
3	Setting gauge for adjusting the exhaust camshaft
4	Basic carrier screws on cylinder head
5	Screw gauge on basic carrier

Courtesy of BMW OF NORTH AMERICA, INC.

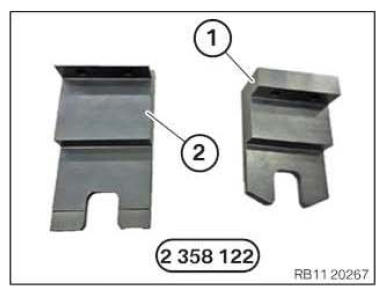

Have the test gauges from the set of special tools 2 358 122 ready:

Number	Description
1	Test gauges for fixing in place the intake camshaft
2	Test gauges for fixing in piece the exhaust camshaft

Courtesy of BMW OF NORTH AMERICA, INC.

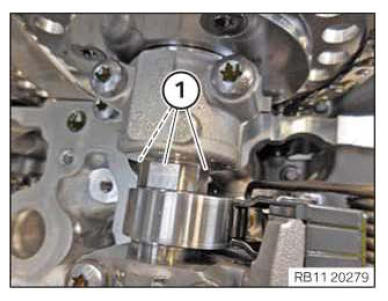

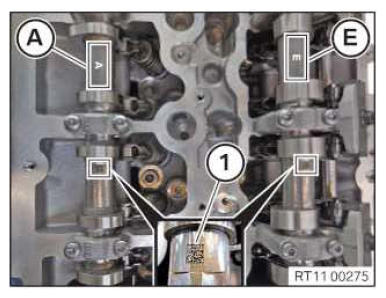

Rotate the intake camshaft (E) and the exhaust camshaft (A) so that the marks (1) are legible from above.

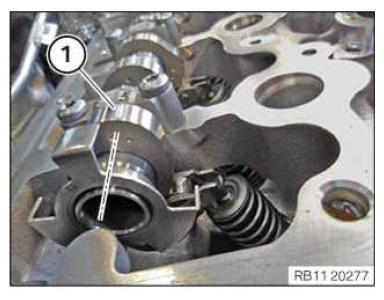

Make sure the cam (1) on the exhaust camshaft on cylinder 1 is pointing slightly to the inside right at an angle.

Courtesy of BMW OF NORTH AMERICA, INC.

Courtesy of BMW OF NORTH AMERICA, INC.

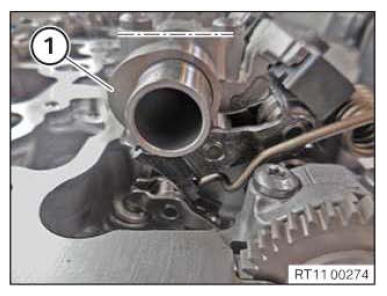

Make sure the cam (1) on the intake camshaft on cylinder 1 is pointing leftwards at an angle.

Courtesy of BMW OF NORTH AMERICA, INC.
Make sure the flattened areas (1) on the intake camshaft and the exhaust camshaft are porting upwards at an angle.

Courtesy of BMW OF NORTH AMERICA, INC.

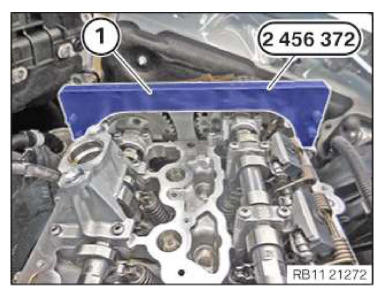

Position the basic carrier (1) from the set of special tools 2 456 372 on the cylinder head.

Courtesy of BMW OF NORTH AMERICA, INC.

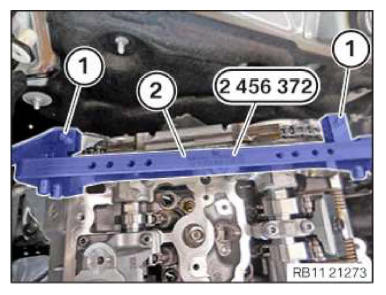

Tighten the screws (1) from special tool set 2 456 372 on the basic carrier (2).

TIGHTENING TORQUES SPECIFICATION

Basic carrier to cylinder head
M6
	Tightening torque	8 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

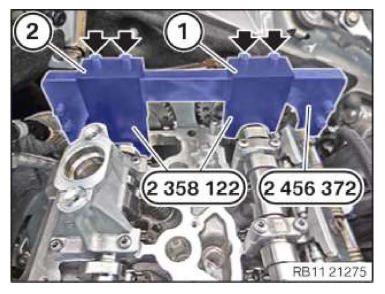

Position the test gauge (1) from the set of special tools 2 358 122 between the intake camshaft and the basic carrier from the set of special tools 2 456 372.
Position the test gauge (2) from the set of special tools 2 358 122 between the exhaust camshaft and the basic carrier from the set of special tools 2 456 372.

Tighten the screws (arrows).

Courtesy of BMW OF NORTH AMERICA, INC.
