Installing both backrest side sections on the rear seat backrest
NOTE:
Description is for left component only. Procedure on the right side is identical.
Installing the backrest side section on the rear seat backrest

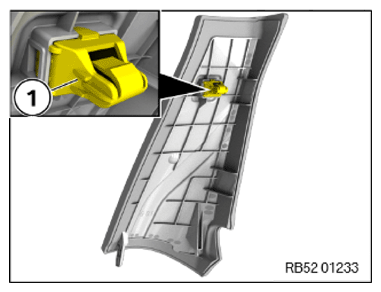

- Check the clamp (1) for damage, replace if necessary.
 Courtesy of BMW OF NORTH AMERICA, INC.
|

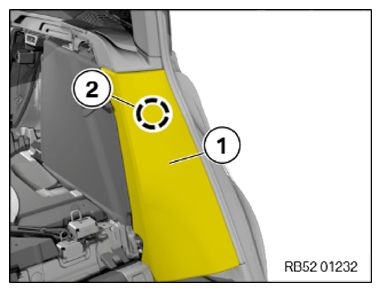

- Clip backrest side section on the rear seat backrest (1) into clamps (2).
 Courtesy of BMW OF NORTH AMERICA, INC.
|
