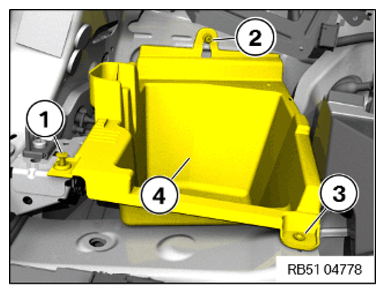

Removing storage compartment at left

Loosen expanding rivet (1).
Loosen nut (2).
Loosen screw (3).
Remove storage compartment at left (4).

G15018412

Courtesy of BMW OF NORTH AMERICA, INC.
