General Orphan Data -- X3 M (F97) (1 Of 2)
>>

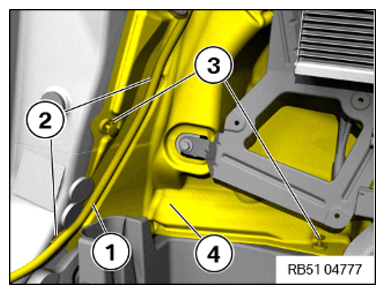

Partially remove the rear left sound insulation
Partially remove the rear left sound insulation
Release the vehicle wiring harness (1) from the detents (2).
Loosen the expanding rivet (3).
Fold the sound insulation (4) away from the repair area.
Courtesy of BMW OF NORTH AMERICA, INC.
