Removing rear light bulb in the trunk lid
CAUTION:
Danger through light source
.
Injury hazard! Risk of short circuits!
Injury hazard! Risk of short circuits!
- Disconnect light source from voltage supply before replacing: Switch off lighting system and ignition.
- For additional information see: 63 99 INFORMATION ON HANDLING BULBS/LIGHT SOURCES (EXTERIOR LIGHTING) .
NOTE:
Description is for left component only. Procedure on the right side is identical.
Preliminary work
- Refer to REMOVING THE TRUNK LID COVER .
CAUTION:
Danger through light source
.
Injury hazard! Risk of short circuits!
Injury hazard! Risk of short circuits!
- Disconnect light source from voltage supply before replacing: Switch off lighting system and ignition.
- For additional information see: 63 99 INFORMATION ON HANDLING BULBS/LIGHT SOURCES (EXTERIOR LIGHTING) .

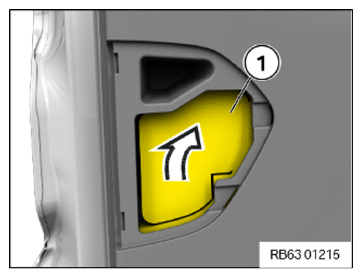

- Fold back the sound insulation (1) in arrow direction.

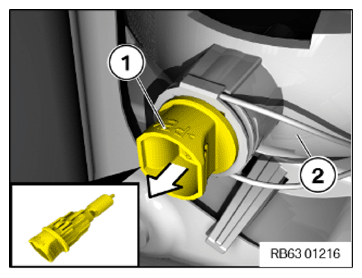

- Release and remove bulb socket (1) with the bulb in arrow direction from the tail light (2).
