Installing the bulb in the tail light in the trunk lid
CAUTION:
Danger through light source
.
Injury hazard! Risk of short circuits!
Injury hazard! Risk of short circuits!
- Disconnect light source from voltage supply before replacing: Switch off lighting system and ignition.
- For additional information see: 63 99 INFORMATION ON HANDLING BULBS/LIGHT SOURCES (EXTERIOR LIGHTING) .
- If necessary, replace the bulb.

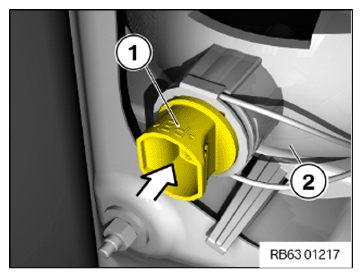

- Insert the bulb socket (1) with the bulb into the tail light (2) in arrow direction, and lock.

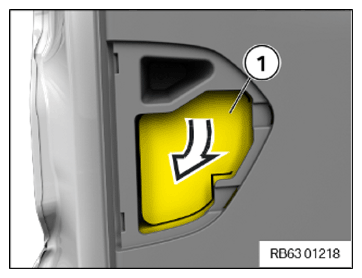

- Close the sound insulation (1) in the direction of the arrow.
Follow-up work
- Refer to INSTALLING COVER OF TRUNK LID .
