Removing the trunk compartment light
NOTE:
Description is for left component only. Procedure on the right side is identical.
Preliminary work
- Refer to REMOVING THE FLAP IN THE LUGGAGE COMPARTMENT TRIM PANEL ON THE LEFT .
- Refer to REMOVING THE LOWER D-PILLAR TRIM PANEL .

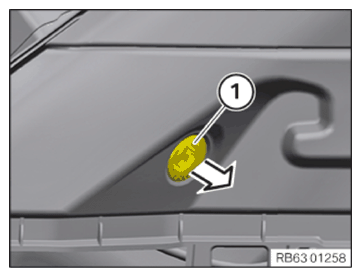

- Unclip the trunk compartment light (1) from the rear in arrow direction.
- Unlock associated plug connection and disconnect.
