Install the auxiliary stop lamp

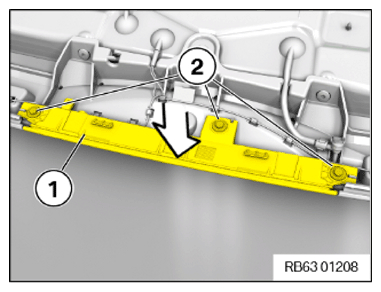

• Fit the auxiliary brake light (1) in arrow direction and tighten the screws (2).
  TIGHTENING TORQUE SPECIFICATIONS



  Auxiliary stop lamp
  screw	Tightening torque	3.0 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Connect the plug connection (1) to the auxiliary brake light (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING REAR SPOILER .
• Refer to MOUNTING BOTH TRIMS FOR THE REAR WINDOW FRAME ON THE SIDE .
• Refer to INSTALLING THE TRIM FOR THE TOP REAR WINDOW FRAME .
