Install the tail light on the trunk lid

Check

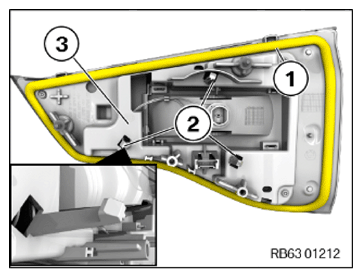

• Check the seal (1) and the retaining lugs (2) on the tail light (3) for damage.

  Courtesy of BMW OF NORTH AMERICA, INC.

  Result

  » If the seal (1) or the retaining lugs (2) are damaged.

  Measure

  • Replace the tail light (3).

  Parts:  Tail lamp

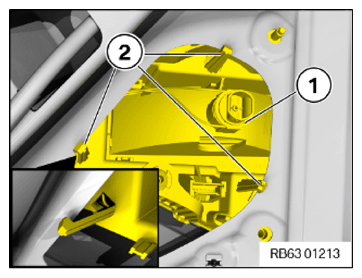

• Insert the tail light (1) from the outside into the trunk lid until the retaining lugs (2) lock.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Position the nuts (1) and the clamping claw on the tail light (2).
• Tighten the nuts (1) on the tail light (2).
  TIGHTENING TORQUE SPECIFICATIONS



  Tail light at trunk lid
  M5 nut	Tightening torque	2.3 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Connect and lock the connector (1) to the tail light (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE TAILGATE TRIM PANEL .
• Refer to MOUNTING BOTH TRIMS FOR THE REAR WINDOW FRAME ON THE SIDE .
• Refer to INSTALLING THE TRIM FOR THE TOP REAR WINDOW FRAME .
• Refer to INSTALLING BOTH TRUNK LID COVERS .
• Refer to INSTALLING THE TRUNK LID LIGHT .
• Refer to INSTALLING THE POWER TAILGATE SWITCH .
