Remove fog light
WARNING:
Vehicle may slip off the vehicle hoist if the vehicle hoist is handled incorrectly
.
Danger! Immobilization period-threatening injuries!
Danger! Immobilization period-threatening injuries!
- Observe safety instructions on raising the vehicle using a vehicle hoist.
- For additional information see: 00 02 001 RAISING THE VEHICLE WITH A VEHICLE LIFT (X3 M)
NOTE:
Description is for left component only. Procedure on the right side is identical.
Preliminary work
- Refer to REMOVING THE WHEEL .
- Refer to PARTIALLY REMOVING THE FRONT WHEEL ARCH TRIM .
- Refer to REMOVING THE FRONT SECTION OF THE FRONT WHEEL ARCH COVER .

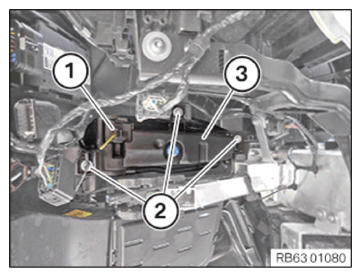

- Unlock plug connection (1) and disconnect.
- Loosen screws (2).
- Remove the fog light (3).
