Remounting control unit for Front Light Electronics

Remove the Front Light Electronics control unit

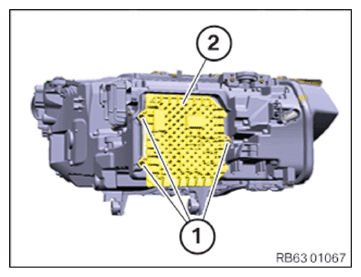

Loosen screws (1).
Pull the Front Light Electronics (2) control unit out of the headlights.

Courtesy of BMW OF NORTH AMERICA, INC.
Unlock and disconnect connector (1).
Remove the Front Light Electronics (2) control unit.

Courtesy of BMW OF NORTH AMERICA, INC.

Install the Front Light Electronics control unit

Check the seal (3) on the control unit for the Front Light Electronics (2) for damage and replace if necessary.
Connect connectors (1) and lock.

Courtesy of BMW OF NORTH AMERICA, INC.
Position the control unit for the front light electronics (2) in the headlight.
Tighten the screws (1).

TIGHTENING TORQUE SPECIFICATIONS

Frontal Light Electronics (FLE)
PT-SCREW 40x12	tightening torque	1.5 Nm

Courtesy of BMW OF NORTH AMERICA, INC.
