Remounting LED module for daytime running lights

Remove the LED module for the daytime running lights

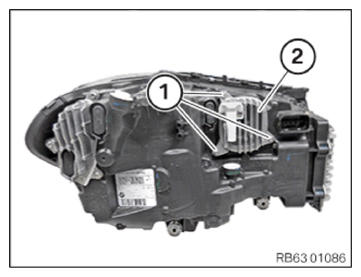

• Loosen screws (1).
• Pull LED module (2) out of headlight.

  Courtesy of BMW OF NORTH AMERICA, INC.

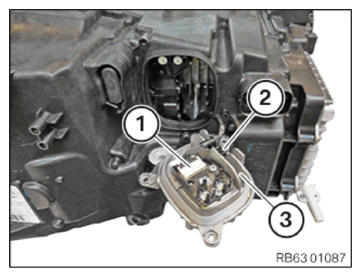

• Unlock connector (1) at LED module (2) and disconnect it.

Courtesy of BMW OF NORTH AMERICA, INC.

Install the LED module for the daytime running lights

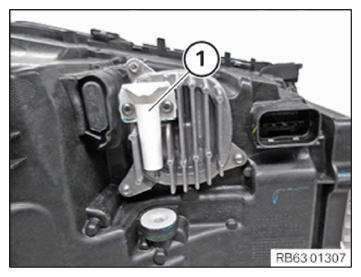

• When replacing the LED module for the daytime running lights: Do not  remount the guide sleeve (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

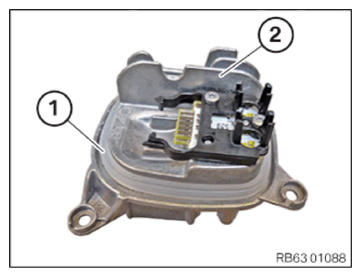

• Check the seal (1) on the LED module (2) for damage and replace as needed.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Connect connector (1) to LED module (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Position the LED module (2) in the headlight.
• Tighten the screws (1).

Courtesy of BMW OF NORTH AMERICA, INC.
