Installing the LED module for the daytime driving lights

NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details.

• Check the seal (1) on the LED module (2) for damage and replace if required.

  Courtesy of BMW OF NORTH AMERICA, INC.

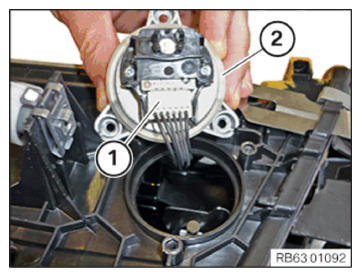

• Connect and lock connector (1) to the LED module (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

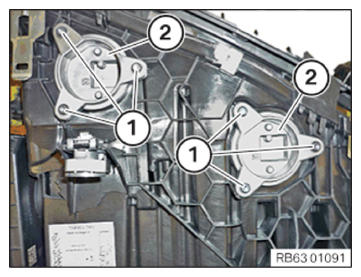

• Position LED module (2) in the headlight.
• Tighten down screws (1).

TIGHTENING TORQUE SPECIFICATIONS

LED module of daytime running lights
Screw	tightening torque	1.5 Nm

Courtesy of BMW OF NORTH AMERICA, INC.
