Installing the LED module for the turn indicator bulb

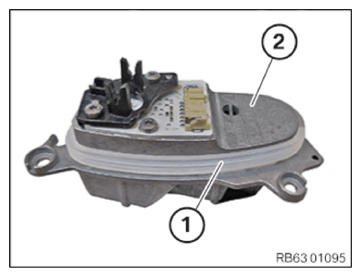

• Check the seal (1) on the LED module (2) for damage and replace as needed.

  Courtesy of BMW OF NORTH AMERICA, INC.

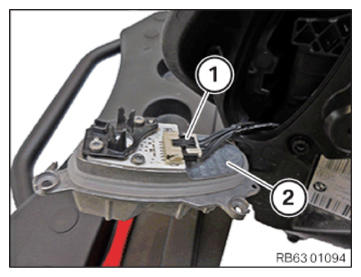

• Connect and lock the connector (1) with the LED module (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

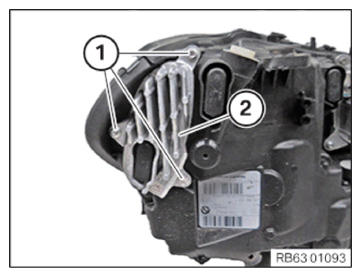

• Position the LED module (2) on the headlamp.
• Tighten down screws (1).

TIGHTENING TORQUE SPECIFICATIONS

LED module of turn signal lamp to headlamp
40x14 screw	Tightening torque	1.5 Nm

Courtesy of BMW OF NORTH AMERICA, INC.
