Installing the module bracket on the front door

Check

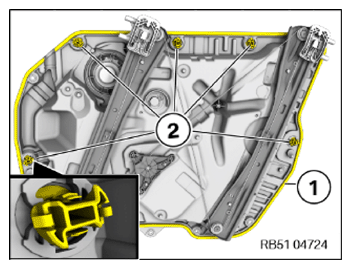

• Check the seal (1) on the module bracket for damage.
• Check locks (2) for damage.

  Courtesy of BMW OF NORTH AMERICA, INC.

  Result

  » The seal (1) on the module bracket is damaged.

  Measure

  • Replace the module bracket.

  Result

  » The locks (2) are damaged.

  Measure

  • Replace the locks (2).

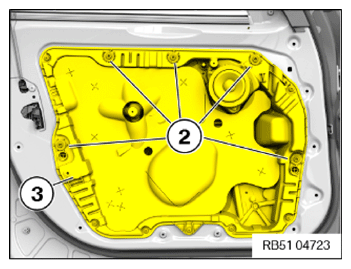

• Position the module bracket (3) and close the locks (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

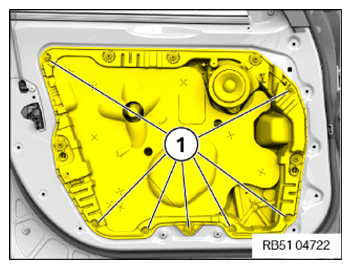

• Tighten down screws (1).
  TIGHTENING TORQUE SPECIFICATIONS



  Module bracket to front door
  M6x14 screw	Tightening torque	8 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

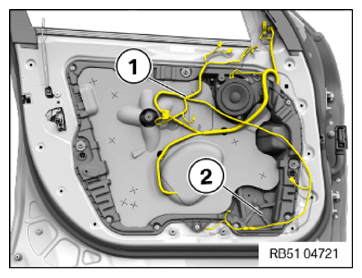

• Clip the detents of the door wiring harness (1) into the module bracket (2).
• Connect door wiring harness connector (1) to module bracket (2) and lock.

  Courtesy of BMW OF NORTH AMERICA, INC.

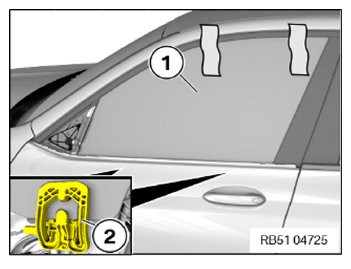

• Release the adhesive tape and manually lower the door window glass (1) until the door window glass (1) snaps into the holder (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE WINDOW CHANNEL STRIP ON THE FRONT DOOR ON THE OUTSIDE .
• Refer to MOUNTING THE OUTSIDE REARVIEW MIRROR ONTO THE FRONT DOOR .
• Refer to INSTALLING FRONT DOOR TRIM PANEL .
• Refer to MOUNTING TRIM OF DOOR HANDLE .
• Refer to MOUNTING MIRROR TRIANGLE COVER .
• Refer to CONNECTING NEGATIVE BATTERY CABLE OF THE SYSTEM BATTERY .
• Refer to ACTIVATING THE 48 V ELECTRICAL SYSTEM .
