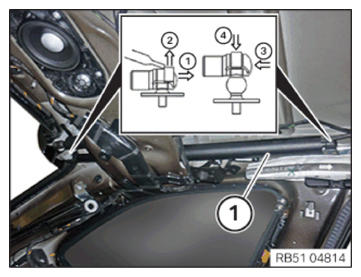

Remove tension spring
NOTE:
RISK OF DAMAGE
Careless handling of tools and sharp-edged components .
Scratches, surface damage .
Careless handling of tools and sharp-edged components .
Scratches, surface damage .
- Protect working area.
- Handle tools and components carefully.
Preliminary work
- Refer to REMOVING THE COVERS FOR THE INTERIOR REARVIEW MIRROR .
- Refer to REMOVING THE INTERIOR REARVIEW MIRROR .
- Refer to REMOVING THE LEFT HANDS-FREE MICROPHONE .
- Refer to REMOVING THE ROOF FUNCTION CENTER (FZD) .
- Refer to REMOVING SUN VISOR .
- Refer to REMOVING THE COUNTER SUPPORT FOR THE SUN VISOR .
- Refer to REMOVING THE VANITY MIRROR LIGHT AT THE FRONT LEFT OR RIGHT .
- Refer to REMOVING A-PILLAR TRIM PANEL .
- Refer to INSTALLING THE HOLDER ON LEFT OR RIGHT .
- Refer to REMOVING THE B-PILLAR TRIM PANEL UPWARDS .
- Refer to REMOVING REAR INTERIOR ROOF LIGHT .
- Refer to REMOVING C-PILLAR TRIM PANEL .
- Refer to REMOVING THE D-PILLAR TRIM PANEL .
- Refer to LOWERING THE HEADLINING ON THE LEFT OR RIGHT .
CAUTION:
Shutting hood or trunk lid
.
Injury hazard!
Injury hazard!
- Support hood/trunk lid in fully open position with the aid of a suitable device.
NOTE:
Description is for left component only. Procedure on the right side is identical.
