Removing the gas pressure spring for hood

CAUTION: Shutting hood or trunk lid .
Injury hazard!

Support hood/trunk lid in fully open position with the aid of a suitable device.

NOTE: Description is for left component only. Procedure on the right side is identical.

Preliminary work

Refer to REMOVING THE COVER PANEL OF THE ENGINE COMPARTMENT IN THE REAR .
Refer to COVERING THE VEHICLE BATTERY .

NOTE: TECHNICAL INFORMATION
The notes on the disassembly and installation of ball sockets with clips are the basis for these repair instructions and must be observed without fail.
For additional information see: 51 23... NOTE INFORMATION ON DISASSEMBLY/INSTALLATION OF BALL SOCKETS WITH CLIP

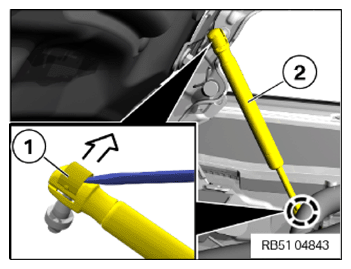

Slide each clamp (1) with a screwdriver in the arrow direction.
Detach the ball sockets from the ball hubs and remove gas pressure spring for hood (2).

Courtesy of BMW OF NORTH AMERICA, INC.
