Remove steering wheel
WARNING:
Pyrotechnic components
.
Danger! Immobilization period-threatening injuries!
Danger! Immobilization period-threatening injuries!
- All work on pyrotechnic parts may be carried out by technically experienced and appropriately trained personnel only.
- Replace any damaged part or ones that have been dropped.
- For additional information see: 72 00 SAFETY REGULATIONS ON HANDLING COMPONENTS WITH GAS GENERATORS .
WARNING:
Airbag unit
.
Danger! Immobilization period-threatening injuries!
Danger! Immobilization period-threatening injuries!
- Before performing any work on the airbag, always disconnect the battery ground lead from the battery.
- Airbag unit may only be set down with the cushion (airbag itself) facing upwards.
- For additional information see: 72 00 SAFETY REGULATIONS ON HANDLING COMPONENTS WITH GAS GENERATORS .
NOTE:
TECHNICAL INFORMATION
Wheel alignment is not necessary after removal, installation or replacement.
Wheel alignment is not necessary after removal, installation or replacement.
Preliminary work
- Refer to DISCONNECTING THE NEGATIVE BATTERY CABLE OF THE SYSTEM BATTERY
- Refer to REMOVING AIRBAG UNIT .
NOTE:
TECHNICAL INFORMATION
When releasing the screw, have a support person brace the steering wheel in order to reduce torque on the steering column!
When releasing the screw, have a support person brace the steering wheel in order to reduce torque on the steering column!
- Shift the steering wheel and wheels to the straight ahead position.

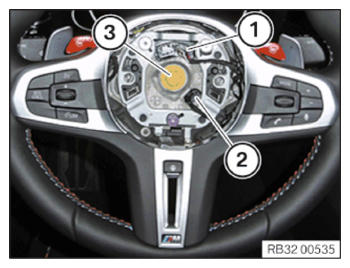

- Unlock and disconnect the plug connections (1) and (2).
- Release the screw (3) and detach the steering wheel.
