Remove the center console trim
NOTE:
RISK OF DAMAGE
Careless handling of tools and sharp-edged components.
Scratches, surface damage.
Careless handling of tools and sharp-edged components.
Scratches, surface damage.
- Protect working area.
- Handle tools and components carefully.
- Protect the gearshift lever against scratches.

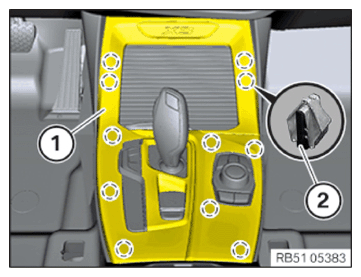

- Unclip center console trim (1) starting at the back, upwards at the clamps (2).
- Unlock the associated plug connections and disconnect.
- Guide out center console trim (1) at the gearshift lever and remove it.
Remove the center console trim
NOTE:
RISK OF DAMAGE
Careless handling of tools and sharp-edged components.
Scratches, surface damage.
Careless handling of tools and sharp-edged components.
Scratches, surface damage.
- Protect working area.
- Handle tools and components carefully.
- Protect the gearshift lever against scratches.

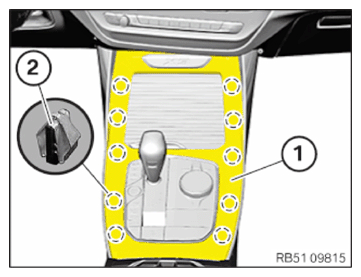

- Release and remove center console trim (1) upwards from clamps (2), starting at the rear.
