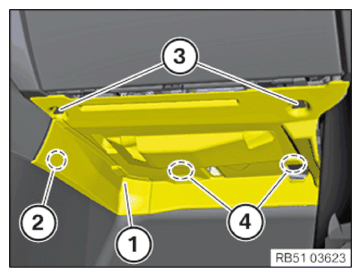

Remove footwell trim panel on the right

• Unclip right footwell trim panel (1) inwardly in the area (2).
• Turn the locks (3) by 90°.
• Unhook right footwell trim panel (1) inwards from the guides (4).
• Unlock associated plug connection and disconnect.
