Remove A-pillar trim panel on the left and right

NOTE: Description is for left component only. Procedure on the right side is identical.

WARNING: Airbag unit.
Danger! Immobilization period-threatening injuries!

• Before performing any work on the airbag, always disconnect the battery ground lead from the battery. See ADDITIONAL INFORMATION .
• Airbag unit may only be set down with the cushion (airbag itself) facing upwards.
• For additional information see: SAFETY REGULATIONS FOR HANDLING COMPONENTS WITH GAS GENERATORS .

WARNING: Pyrotechnic components.
Danger! Immobilization period-threatening injuries!

• All work on pyrotechnic parts may be carried out by technically experienced and appropriately trained personnel only.
• Replace any damaged part or ones that have been dropped.
• For additional information see: SAFETY REGULATIONS FOR HANDLING COMPONENTS WITH GAS GENERATORS .

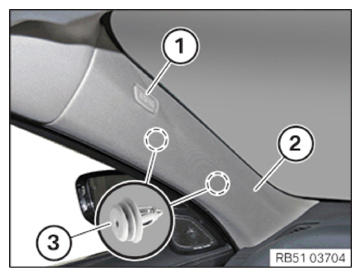

• Unclip cover panel (1) and unscrew the bolt below it.
• Detach A-pillar trim panel (2) from the clips (3) and remove upward.

Courtesy of BMW OF NORTH AMERICA, INC.
