Installing the engine wiring harness for the sensor system 2

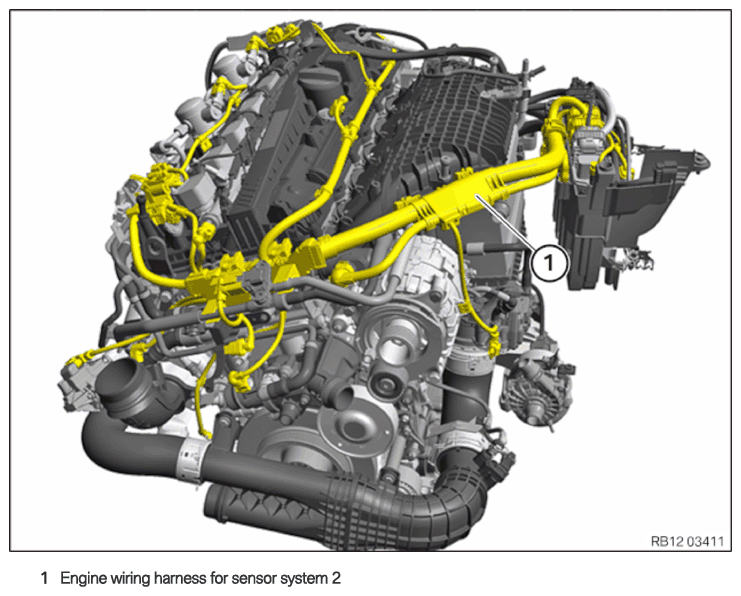

Engine wiring harness for sensor system 2
Improper routing of cables and wiring harnesses .
Trapped, crushed or damaged cables may cause short circuits and malfunctions .
- Route all cables without abrasions, do not trap and crush.
- Feed in the engine wiring harness (1) for the sensor system 2 and install it.
- Feed in the engine wiring harness (5) for the sensor system 2 and install it.
The locks (4) must engage audibly.
- Tighten down screw (3).TIGHTENING TORQUES SPECIFICATION
Front ground cable to cylinder head M6 tightening torque 8 Nm - Connect the connectors (2) and (1) and lock. The connector (2) and (1) must engage audibly.
- Guide the tank vent line with pressure sensor into the holders (arrows) (2).
- Connect connectors (1) and lock.
The connector (1) must engage audibly.
- Feed in and position auxiliary coolant pump (4).
- Feed in and position retaining bracket (3).
- Tighten nut (2).TIGHTENING TORQUES SPECIFICATION
Auxiliary coolant pump holder to cylinder head M6 tightening torque 8 Nm - Connect connectors (1) and lock.
The connector (1) must engage audibly.
- Connect connectors (1) and lock.
The connector (1) must engage audibly.
- Secure clamp (arrow).
- Feed in the engine wiring harness (2) for the sensor system 2 and install it.
The locks (arrows) must engage audibly.
- Connect connectors (1) and lock.
The connectors (1) must engage audibly.
- Connect connectors (1) and lock.
The connector (1) must engage audibly.
- Insert and install the connector (1) in the carrier plate. The locks (arrows) must engage audibly.
- Feed the connector (1) into the carrier plate in the arrow direction and install it.
The lock (1) must engage audibly.
- Feed in and install the connector (1).
The connector (1) must engage audibly.
- Connect connectors (1) and lock.
The connectors (1) must engage audibly.
- Secure the clamps (arrows).
- Guide in and position the cable holder (2).
- Tighten the screws (1).TIGHTENING TORQUES SPECIFICATION
Oxygen sensor bracket to cylinder head cover Self-tapping screw M6 tightening torque 5.5 Nm - Secure the clamps (arrows).
- Connect connectors (1) and lock.
The connectors (1) must engage audibly.
- Feed in the engine wiring harness (2) for sensor system 2 and install it.
- Secure the clamps (arrows).
- Connect connectors (1) and lock.
The connectors (1) must engage audibly.
- Secure the clamps (arrows).
- Connect connectors (1) and lock.
The connector (1) must engage audibly.
- Connect connectors (1) and lock.
The connector (1) must engage audibly.
- Secure clamp (arrow).
- Guide in the wiring harness section (1) and install.
The locks (arrows) must engage audibly.
- Connect the cable clip (1) with the control unit holder (2) and lock it.
The lock (arrow) must engage audibly.
- Connect the connector (1) with the control unit bracket (2) and lock it.
The connector (1) must engage audibly.
- Connect the connector (2) with the control unit bracket (3) and lock it.
The connector (2) must engage audibly.
- Connect connectors (1) and lock.
The connector (1) must engage audibly.
- Connect connectors (2) and lock.
All the connectors (2) must engage audibly.
- Connect connectors (1) and lock.
All connectors (1) must engage audibly.
- Connect connectors (1) and lock.
The connector (1) must engage audibly.
- Connect connectors (1) and lock.
The connectors (1) must engage audibly.
- Connect the connector (1) with the control valve (2) for the piston cooling and lock it.
The connector (1) must engage audibly.
Follow-up work
- Refer to INSTALLING THE CHARGE AIR DUCT FOR 1-3 CYLINDERS .
- Refer to INSTALLING FAN COWL .
- Refer to INSTALLING THE LEFT AIR DUCT .
- Refer to INSTALLING THE CLEAN AIR PIPE FOR CYLINDERS 1-3 .
- Refer to INSTALLING THE REAR TOP CROSS CONNECTION .
- Refer to INSTALLING FRONT-END STRUT ON LEFT AND RIGHT .
- Refer to INSTALLING FRONT CROSS CONNECTION .
- Refer to INSTALLING THE COVER IN THE ENGINE COMPARTMENT AT TOP LEFT AND RIGHT .
- Refer to INSTALLING INTAKE FILTER HOUSING .
- Refer to INSTALLING THE STRUT BRACE .
- Refer to INSTALLING THE SECOND END PANEL UNDERNEATH .
- Refer to INSTALLING THE COWL UPPER PART .
- Refer to INSTALLING TENSION STRUT ON SHOCK TOWER .
- Refer to INSTALLING THE SEAL FOR THE HOOD GASKET LEFT AND RIGHT .
- Refer to INSTALLING WINDSHIELD PANEL COVER .
- Refer to INSTALLING LEFT AND RIGHT WIPER ARM .
- Refer to CONNECTING NEGATIVE BATTERY CABLE OF THE SYSTEM BATTERY .
- Refer to INSTALLING THE COVER OF THE ENGINE COMPARTMENT ON THE REAR LEFT .
- Refer to INSTALLING WINDSHIELD PANEL COVER .
- Refer to INSTALLING LEFT AND RIGHT WIPER ARM .
- Refer to INSTALLING THE REAR RIGHT ENGINE COMPARTMENT COVER .
- Refer to INSTALLING THE FRONT HOOD SEAL AT THE REAR .
