Replacing the tweeter on the mirror triangle
NOTE:
Description is for left component only. Procedure on the right side is identical.
Preliminary work
- Refer to REMOVING THE MIRROR TRIANGLE COVER .

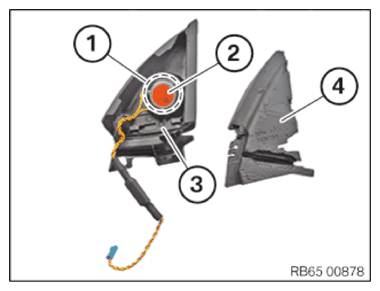

- Remove the foam material (4) from the trim (3) .
- Release the tweeter (2)
from the detents (1)
.
- Replace tweeter on the mirror triangle.
Parts: Tweeter on the mirror triangle
- Snap the tweeter (2) into the locks (1) .
- Insert foam material (4) into the trim (3) .
- Insert the cable of the tweeter (2) into the foam material (4) .
Follow-up work
- Refer to MOUNTING MIRROR TRIANGLE COVER .
