Connecting the bleeder unit for the brake fluid

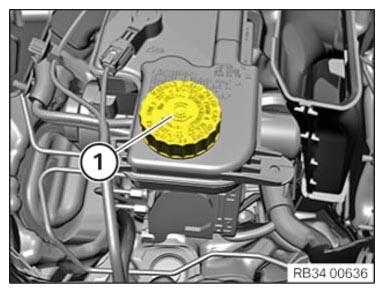

- Open sealing cap (1).
NOTE:
TECHNICAL INFORMATION
Use only BMW-approved brake fluids; see "Fluid Capacities" tab for the selected vehicle.
Use only BMW-approved brake fluids; see "Fluid Capacities" tab for the selected vehicle.
NOTE:
RISK OF DAMAGE
Paint damage.
Mechanical or chemical action may lead to paint damage.
Paint damage.
Mechanical or chemical action may lead to paint damage.
- Cover up working area with specified covering material only.

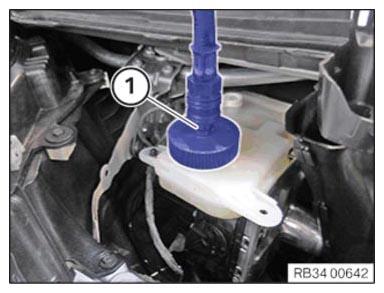

- Connect the bleeder unit (1) to the brake fluid expansion tank and turn it on.
Follow the operating instructions of the respective equipment manufacturer.
- Do not exceed the tire pressure of 2 bar.
