Removing the cowl upper part in the center

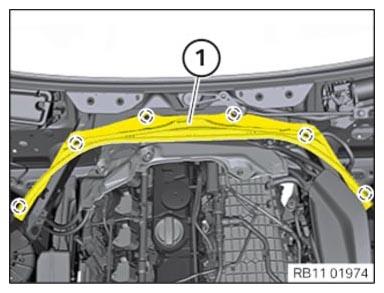

Unscrew the bolts in the marked areas.
Remove the center cowl upper part (1).

G16412286

Courtesy of BMW OF NORTH AMERICA, INC.
