Remove trailing link at spring bolt
Remove trailing link at spring bolt

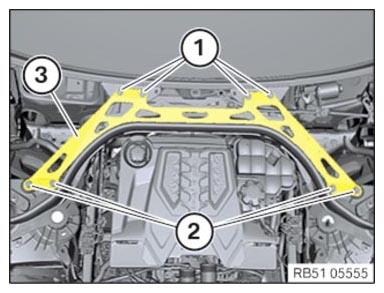

Loosen screws (1) and (2).
Remove tension strut (3) at the shock tower upwards.
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
