Remove expansion tank for the charge air cooler
WARNING:
Hot surfaces
.
Risk of burning!
Risk of burning!
- Perform all work only on components that have cooled down.
WARNING:
Hot fluids
.
Risk of scalding!
Risk of scalding!
- Conduct all work in the vehicle wearing appropriate personal protective equipment only.
NOTE:
TECHNICAL INFORMATION
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.
Preliminary work
- Refer to REMOVING THE COVER PANEL OF THE MASTER DME CONTROL UNIT .
- Refer to REMOVING THE ACOUSTIC COVER .
NOTE:
TECHNICAL INFORMATION
Only flexible hose pipes may be clamped off.
Only flexible hose pipes may be clamped off.

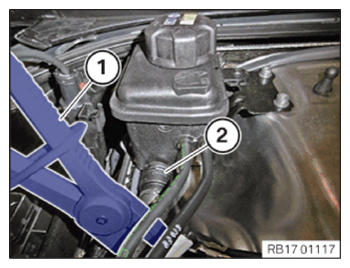

- Disconnect the coolant line (2) with clamping pliers (1).
- Turn sealing cap (1) of the expansion tank for the charge air cooler counter-clockwise and open it.
- Loosen screw (2).
- Suction the coolant using a standard syringe or a suitable tool.
- Turn sealing cap (1) of the expansion tank for the charge air cooler clockwise and close it.
- Prepare a standard waterproof rubber mat (1).
Letter: Dimension in cm A 32.00 B 52.00 - Position the pressure sensor on cylinder head cover.

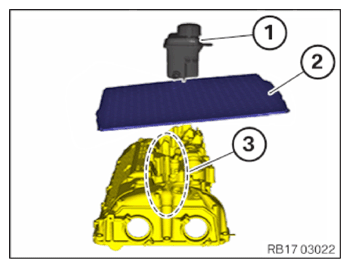

- Ensure that rubber mat (2) covers the areas between expansion tank (1) and the cylinder head cover in the area of injector shafts (3).
- Disengage retaining spring (1) upwards out of the connecting branch (2) of the coolant line with a screwdriver.
- Press in locking mechanism (3) and detach the coolant lines (4).
- Do not use clamping pliers to disconnect plastic tubes (4).
- Catch and dispose of escaping coolant.
- Remove the expansion tank for the charge air cooler.
