Removing the rear left and right handle
NOTE:
Description is for left component only. Procedure on the right side is identical.
Removing the grab handle
- Expand the grab handle (1) towards the bottom.
- Disengage and remove the locking insert (2) with an angle screwdriver (3) as shown.
- Pull the grab handle (2) slightly to the inside and hold it.

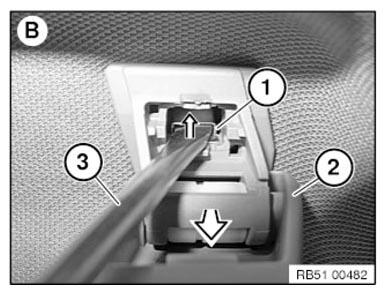

- Release the top and bottom release tab (1) with a suitable screwdriver (3) in the arrow direction respectively.
- Guide the grab handle (2) out.
- Repeat the operation on the other side of the grab handle (2).
