Removing both rear side trim panels
NOTE:
Description is for left component only. Procedure on the right side is identical.
Remove rear side trim panel

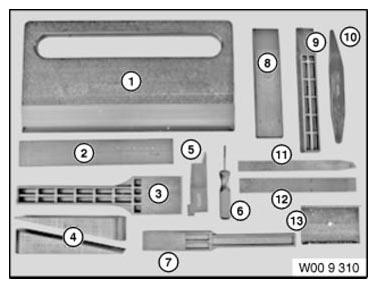

- Get the set of special tools 0 493 752 (00 9 329)
ready.

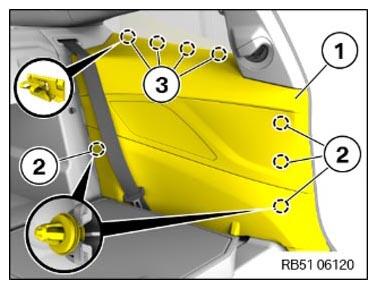

- Unclip the rear side trim panel (1) with the clips (2) using a suitable tool.
- Unclip the rear side trim panel (1) upwards out of the clamps (3) and feed it out of the edge protection.

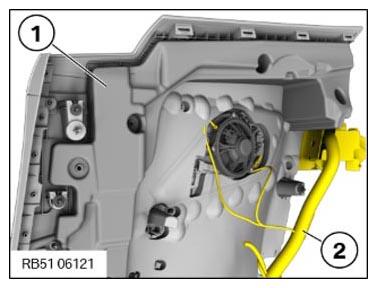

- Unlock and disconnect all the plug connections on the rear side trim panel (1) of the wiring harness (2).
