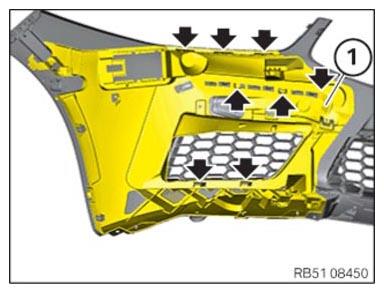

Installing the frame laterally on the bumper cover

• Attach frames (1) and snap into the detents (arrows).
• Hook the wiring harness in the holders on frame (1) of the bumper cover.

  Courtesy of BMW OF NORTH AMERICA, INC.

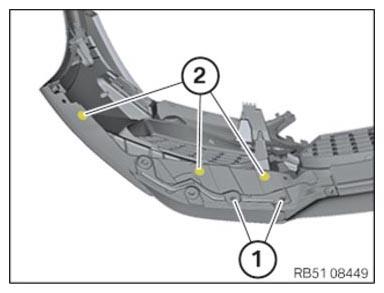

• Mount the expanding rivets (2).
• Tighten the screws (1).
  TIGHTENING TORQUE SPECIFICATION



  Front spoiler to bumper cover
  Oval-head screw	tightening torque	3.0 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

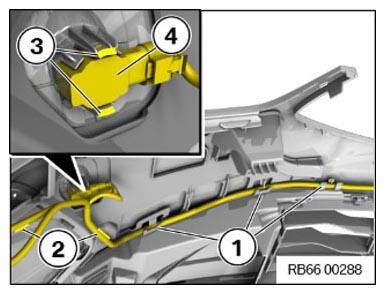

• Position ultrasonic sensor (4) correctly in the bumper cover and lock it in place with snap-in lugs (3).
• Clip in wiring harness with brackets (2).
• Hook the wiring harness into holders (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Check

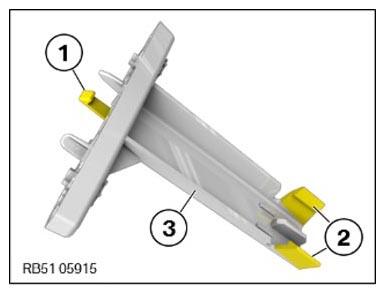

• Check detents (1) and (2) on guide (3) for the bumper cover for damage.

  Courtesy of BMW OF NORTH AMERICA, INC.

  Result

  » The detent is damaged.

  Measure

  • Replace the guide for the bumper cover.

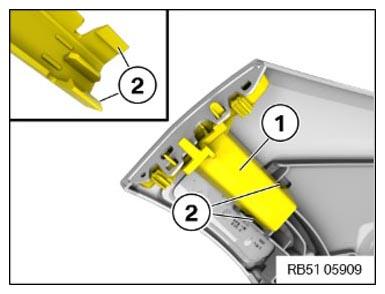

• Feed bumper guide (1) in from below and clip in to the detents (2).

Courtesy of BMW OF NORTH AMERICA, INC.
