Install the KAFAS camera

Install KAFAS camera (high version)

NOTE: TECHNICAL INFORMATION
Detents, guides and mounting elements must not be damaged or missing.

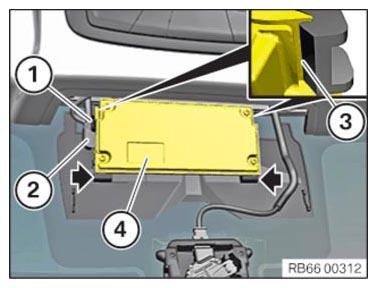

Feed in the KAFAS camera (4) in the guides (arrows) and engage it in the snap-in lugs (3).
Make sure that the KAFAS camera (4) is engaged correctly at the snap-in lugs (3).
Connect connectors (2) and lock.
Connect connectors (1) and lock.

Courtesy of BMW OF NORTH AMERICA, INC.

Install KAFAS camera (Mid variant)

NOTE: TECHNICAL INFORMATION
Detents, guides and mounting elements must not be damaged or missing.

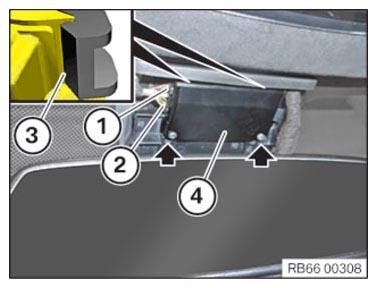

Feed in KAFAS camera (4) on the guides (arrows) and engage the retaining lugs (3).
Make sure that the KAFAS camera (4) engages correctly in the snap-in lugs (3).
Connect connectors (2) and lock.
Connect connectors (1) and lock.

Courtesy of BMW OF NORTH AMERICA, INC.

Install KAFAS camera (high version)

NOTE: TECHNICAL INFORMATION
Detents, guides and mounting elements must not be damaged or missing.

Feed in the KAFAS camera (4) in the guides (arrows) and engage it in the snap-in lugs (3).
Make sure that the KAFAS camera (4) is engaged correctly at the snap-in lugs (3).
Connect connectors (2) and lock.
Connect connectors (1) and lock.

Courtesy of BMW OF NORTH AMERICA, INC.

Install KAFAS camera (Mid variant)

NOTE: TECHNICAL INFORMATION
Detents, guides and mounting elements must not be damaged or missing.

Feed in KAFAS camera (4) on the guides (arrows) and engage the retaining lugs (3).
Make sure that the KAFAS camera (4) engages correctly in the snap-in lugs (3).
Connect connectors (2) and lock.
Connect connectors (1) and lock.

Courtesy of BMW OF NORTH AMERICA, INC.
