Install both front seats
NOTE:
Procedure shows driver's seat only. Procedure on the passenger side is identical.
NOTE:
Perform the steps on the left and right side.
WARNING:
Pyrotechnic components.
Danger! Immobilization period-threatening injuries!
Danger! Immobilization period-threatening injuries!
- All work on pyrotechnic parts may be carried out by technically experienced and appropriately trained personnel only.
- Replace any damaged part or ones that have been dropped.
- For additional information see: SAFETY REGULATIONS FOR HANDLING COMPONENTS WITH GAS GENERATORS .
NOTE:
RISK OF DAMAGE
Careless handling of tools and sharp-edged components.
Scratches, surface damage.
Careless handling of tools and sharp-edged components.
Scratches, surface damage.
- Protect working area.
- Handle tools and components carefully.
- Cover the door sill using protective covers.
NOTE:
RISK OF DAMAGE
Heavy component.
Heavy components can lead to injury or damage.
Heavy component.
Heavy components can lead to injury or damage.
- Remove and install heavy components with the aid of another person/other persons.

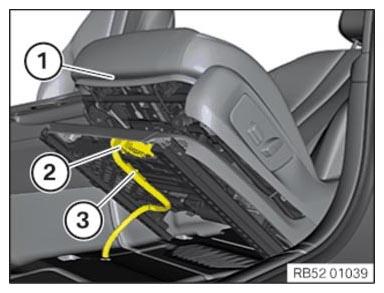

- Lift front seat (1) into the vehicle with the assistance of a support person.
- Place front seat (1) to the rear.
- Connect connectors (2) and lock.
- Check all plug connections for completeness, correct fit and locking where required.
- Attach the cable clip (3).

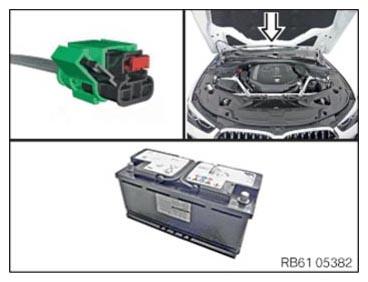

Activate vehicle electrical system:

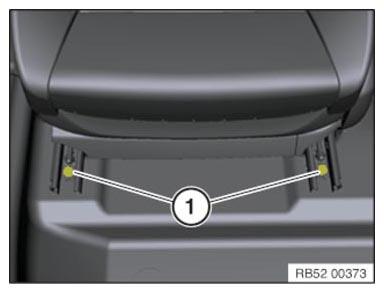

- Shift front seat rearwards.
- Replace screws (1).
Parts: Screws
- Tighten down screws (1).
TIGHTENING TORQUE SPECIFICATION
| Seat to body | ||
|---|---|---|
| Cheese head screw with collar Replace screw. |
Tightening torque | 42 Nm |

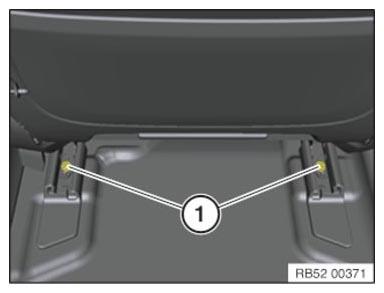

- Shift front seat forwards.
Replace screws (1).
Parts: Screws
- Tighten down screws (1).
TIGHTENING TORQUE SPECIFICATION
| Seat to body | ||
|---|---|---|
| Cheese head screw with collar Replace screw. |
Tightening torque | 42 Nm |
